Features
Standards: conforming to USBV1.0, 1.1 and 2.0 and EIA RS-232
USB 2.0 High Speed (480 Mbits/Second) and Full Speed (12Mbits/Second)
USB signals: VCC, DATA+, DATA-, GND
RS-232 signals: DCD RXD TXD DTR GND DSR RTS CTS RI
Direction control: adoption of automatic data stream control for automatic recognition and control of data transmission direction
Supports serial transmission rate up to230400bps
UART Interface supports 7/8 bit data, 1/2 stop bits, and Odd/Even/Mark/Space/No Parity
Transmission distance: 5 meters for RS-232 and less than 5 meters for USB
Interface protection: 600 lightning strike protection, ±15KV ESD protection and surging
Interface forms: B interface female connector and DB9 male connector for USB.
LED indicators for adapter data activity
Supports automatic handshake mode
Working environment: -40 to 85 , relative humidity 5% to 95%
Supports bus powered, self powered and high power bus powered USB configurations
Optional DC jack(DC 12V) or terminal block power connections (9-36 DC )

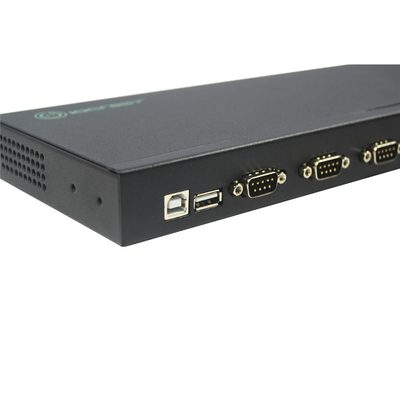

1*USB2.0 to 8 Port Serial Adapter
1*Driver CD
1*USB Type A to B Cable
1*Instruction Manual
1*Power Adapter
