♦ Features
1) High Efficiency And Good Price
2) Built-in EMI Filter
3) 100% Full Load Burn-in Test
4) Low Output Ripple And Noise
5) Protection:Over Load / Over Voltage / Short Circuit
6) Most items could provide adjustable +-10% for output voltage
7) Could meet the demand perfectly both for 220V and 110V input voltage
8) Could provide customized power supply for special output / special input / special protection etc.
*** Please note: We maybe modify the products according to different situation without informing.,

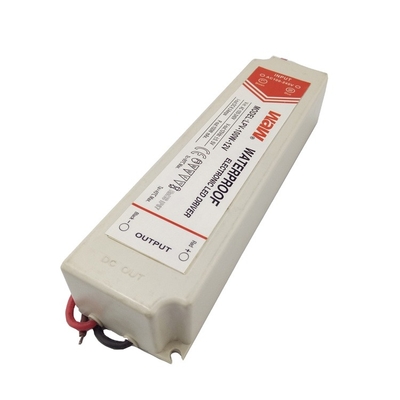

| Waterproof IP67 Led Driver | |||||
|
MODEL |
LPV-100-12 |
LPV-100-24 |
LPV-100-36 |
LPV-100-48 |
|
|
OUTPUT
|
DC voltage |
12V |
24V |
36V |
48V |
|
Rated current |
8.5A |
4.2A |
2.8A |
2.1A |
|
|
Current range |
0 ~ 8.5A |
0 ~ 4.2A |
0 ~ 2.8A |
0 ~ 2.1A |
|
|
Rated power |
102W |
100.8W |
100.8W |
100.8W |
|
|
Ripple & noise |
100mVp-p |
120mVp-p |
150mVp-p |
150mVp-p |
|
|
Setup,rise,hold time |
500ms, 20ms,20ms/230VAC |
||||
|
INPUT
|
Voltage range |
AC85~265V wide range 47~63Hz |
|||
|
Frequency range |
47 ~ 63Hz |
||||
|
Efficiency |
83% |
84% |
84% |
85% |
|
|
Ac current |
2.4A/115VAC 1.2A/230VAC |
||||
|
Inrush current |
Cold start 40A |
||||
|
Leakage current |
<2mA/240VAC |
||||
|
PROTECTION
|
Overload
|
115 ~ 150% rated output power |
|||
|
Protection type : Constant current limiting, recovers automatically after fault condition is removed |
|||||
|
Over voltage
|
5.8~6.8V |
28~32V |
40~44V |
55~64V |
|
|
Protection type :Shut off |
|||||
|
ENVIRONMENT |
Working temp,humidity |
-20℃ ~ +60℃,20% ~ 90% RH non-condensing |
|||
|
Storage temp,humidity |
-20℃ ~ +85℃,10% ~ 95% RH non-condensing |
||||
|
Withstand vibration |
10 ~ 500Hz, 2G 10min/1cycle,period for 60min. each axes |
||||
|
SAFETY & EMC |
Safety standard |
Design refer to UL1012,EN60950-1,EN61347-1,EN-61347-2 approved |
|||
|
Withstand voltage |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
||||
|
Isolation resistance |
I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
||||
|
EMC standard |
EN55015,EN55022,EN55024,EN61000-3-2,EN61000-3-3,EN61547 approved |
||||
|
OTHERS |
MTBF |
500K hrs |
|||
|
Dimension |
190*52*37mm (L*W*H) 0.75kg; 21ps/craton ( common packing ) |
||||
|
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. |
||||
|
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. |
|||||
|
3. Tolerance : includes set up tolerance, line regulation and load regulation. |
|||||
